VAWS V2.0
The VAWS V2.0 covers every module on V.A.G group vehicles and associated brands—including Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, VW, VW Commercial Vehicles, VW LT3, and MAN Light-Duty vehicles. From engine and transmission to airbag and ABS, it provides comprehensive full systems diagnostic scan, 9 specialized service functions, and lifetime free software updates. Compatible with supported models from 1996 to present, it is the ultimate standalone diagnostic companion for owners and V.A.G specialists.
Tough, simple, and ready out of the case.

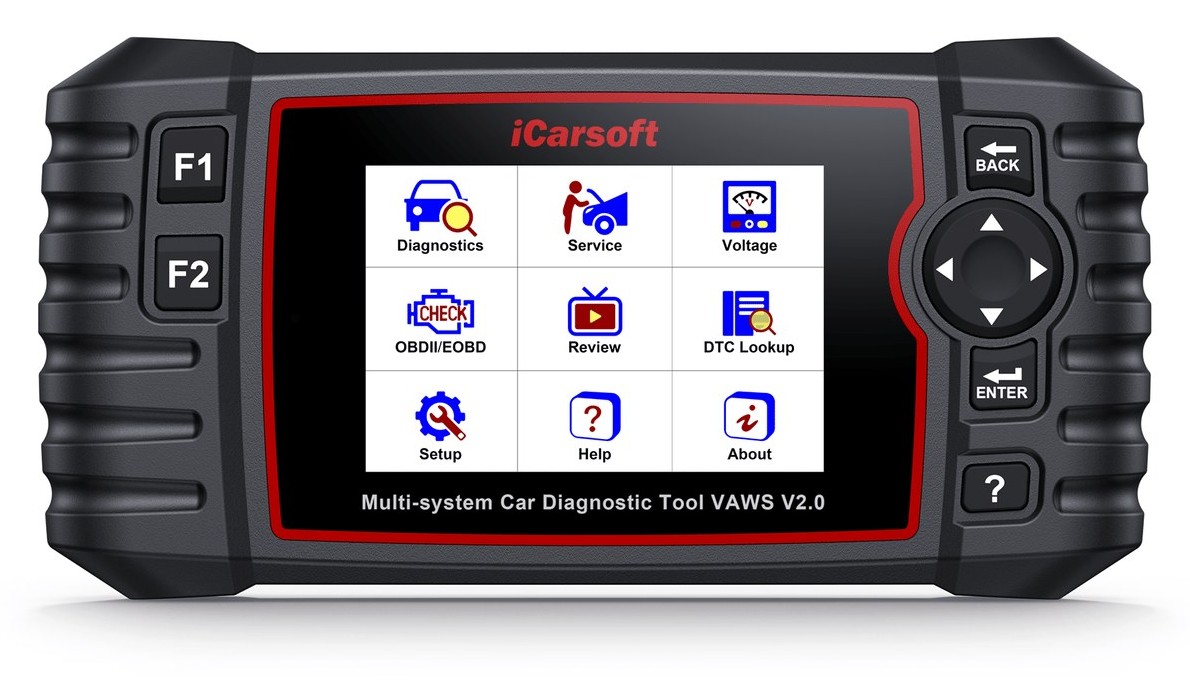

The iCarsoft VAWS V2.0 features a vibrant 4-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
One price on day one — and that's the end of it.
Unlike other OBD scan tools on the market that require annual subscription fees, the VAWS V2.0 offers lifetime free software upgrades.
UPDATE PLANKeeps pace with the group's newest electronics.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by V.A.G group vehicles.
Plug in. The right model loads by itself.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Nine essentials, ready before the service light blinks.
The VAWS V2.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Diagnostics with no language barrier.
The V.A.G scanner VAWS V2.0 supports 15 interface languages — pick yours from the list below.
Scan the whole car, not just the engine bay.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the VAWS V2.0 provides diagnostic coverage for more complex vehicle systems.
Test modes at the ready, inspection after inspection.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Scan today, print the proof tomorrow.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

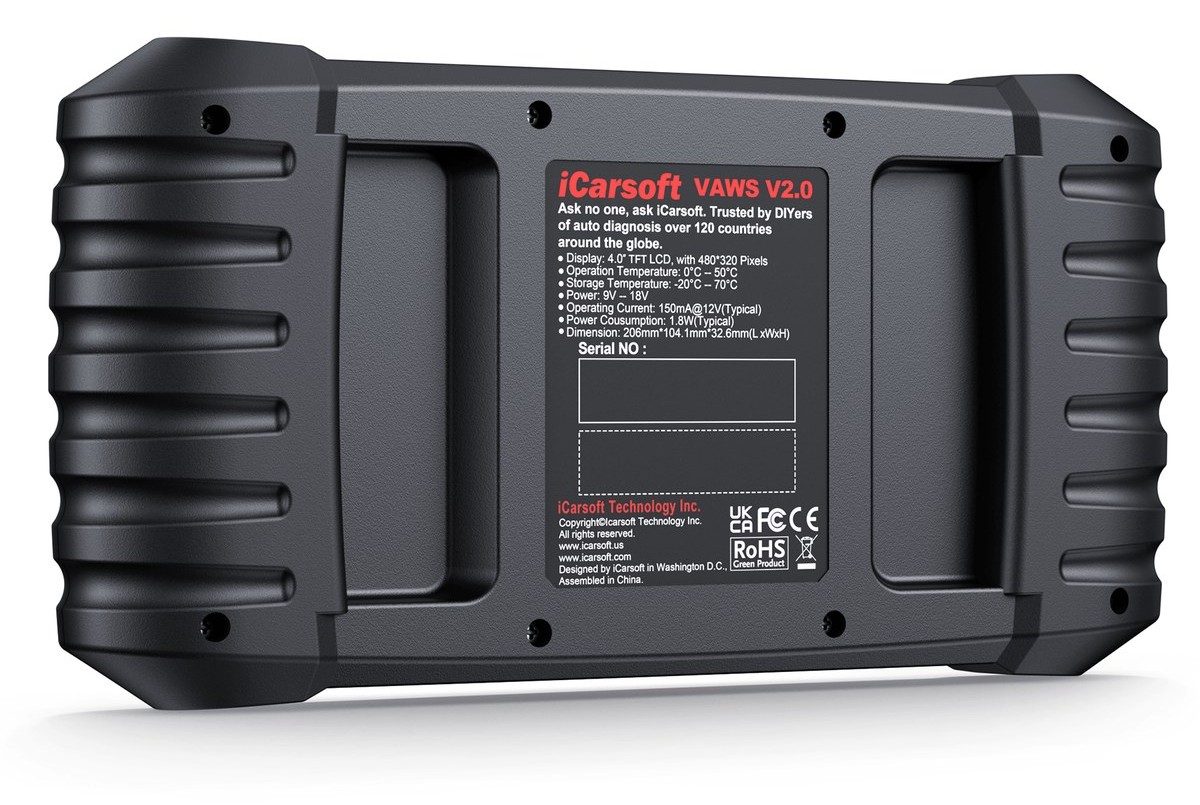

What's under the hood of the tool itself.
| Display | 4.0-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 206 × 104.1 × 32.6 mm (8.11 × 4.10 × 1.28 in) |
| Net Weight | ≈ 350 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

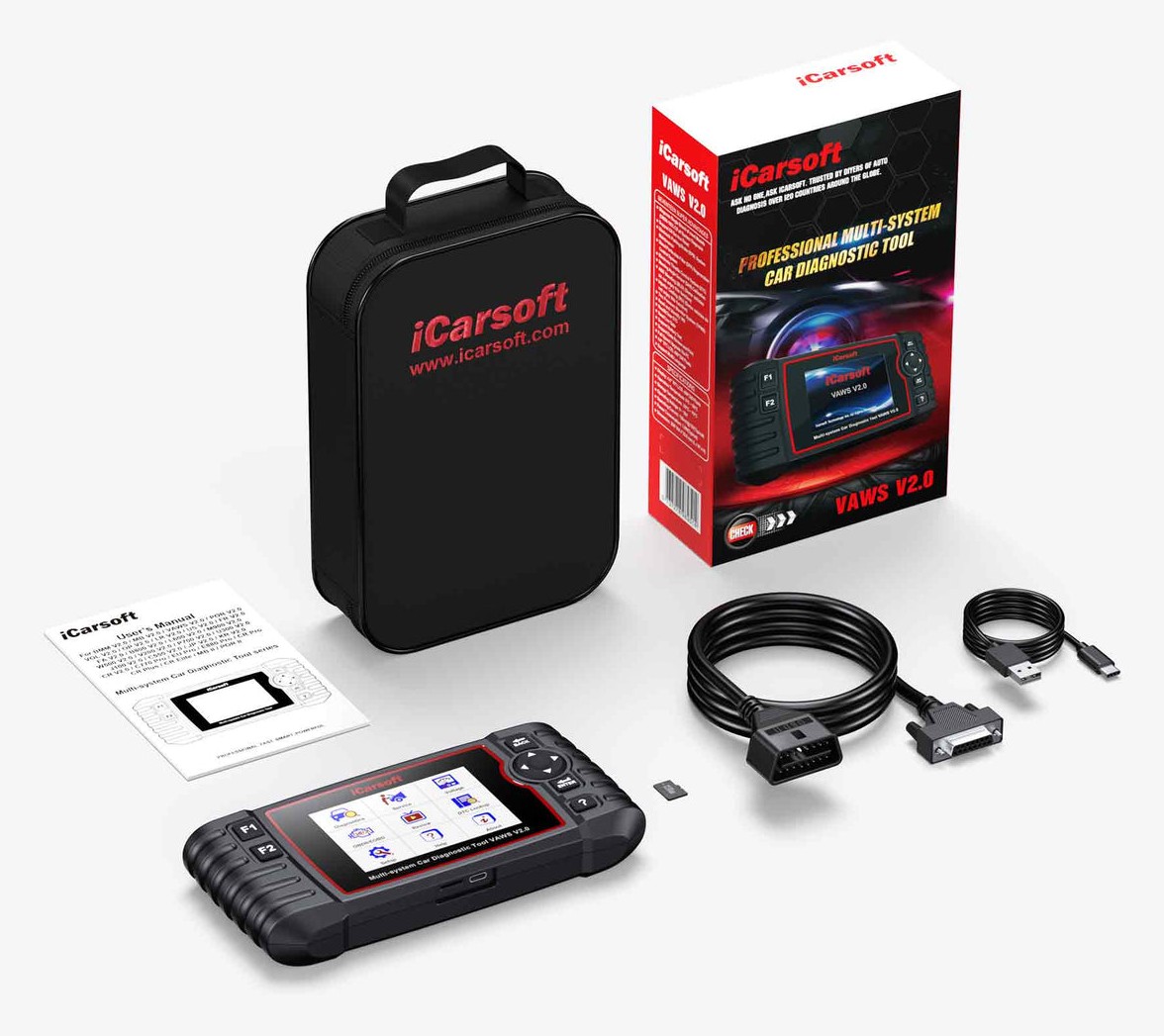

Six essentials, zero extras to buy.
Where the V2.0 sits in the VAWS family.
Every VAWS scanner carries the same trusted Audi / Bentley / Bugatti / Lamborghini / SEAT / Skoda / VW coverage — the V2.0 is the smart-value generation with the full set of everyday service resets. Newer models add bi-directional control and more.
| Feature | VAWS V1.0 | VAWS V2.0 | VAWS V3.0 | VAWS V4.0 |
|---|---|---|---|---|
| Coverage | Audi Bentley Bugatti Lamborghini SEAT Skoda VW VW Commercial Vehicles VW LT3 MAN Light-Duty | Audi Bentley Bugatti Lamborghini SEAT Skoda VW VW Commercial Vehicles VW LT3 MAN Light-Duty | Audi Bentley Bugatti Lamborghini SEAT Skoda VW VW Commercial Vehicles VW LT3 MAN Light-Duty | Audi Bentley Bugatti Lamborghini SEAT Skoda VW VW Commercial Vehicles VW LT3 MAN Light-Duty +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 34 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Unsure whether a specific function is supported on your exact model year? Send us your VIN and we will confirm before you order.
Check by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the VAWS V2.0 from Audi / Bentley / Bugatti / Lamborghini / SEAT / Skoda / VW owners, mechanics and channels — see the unit running live diagnostics and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the VAWS V2.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Audi / Bentley / Bugatti / Lamborghini / SEAT / Skoda / VW models and functions the VAWS V2.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The VAWS V2.0 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
Interested in the VAWS V2.0?
This page is for product information. Tell us what you need and our team will get back to you shortly — to confirm vehicle compatibility, request a quote, or find your nearest authorized dealer.
- Confirm vehicle compatibility Check support for your VIN / model year
- Get pricing & availability Quotes, stock, wholesale & retail inquiries
- Find a local authorized dealer We connect you with your nearest channel
Want to become a dealer? Apply to partner →
By submitting, you agree to be contacted about this inquiry. We never share your information.
