LR V4.0
The LR V4.0 covers every Jaguar / Land Rover system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 38 service functions, and lifetime free software updates. Compatible with Jaguar / Land Rover models from 1996 to 2025.
Unbox it for Jaguar & Land Rover — then claim two more brands, free.
The iCarsoft LR V4.0 comes pre-installed with software for Jaguar / Land Rover, making it ready to use right out of the box. 2 further vehicle groups can be downloaded when you need it free of charge.
Pre-installed
Free Downloads
Downloaded free of charge, whenever you need them — no extra cost, ever.
Total Coverage
Pay once and cover the brands you actually service — far beyond Jaguar & Land Rover.

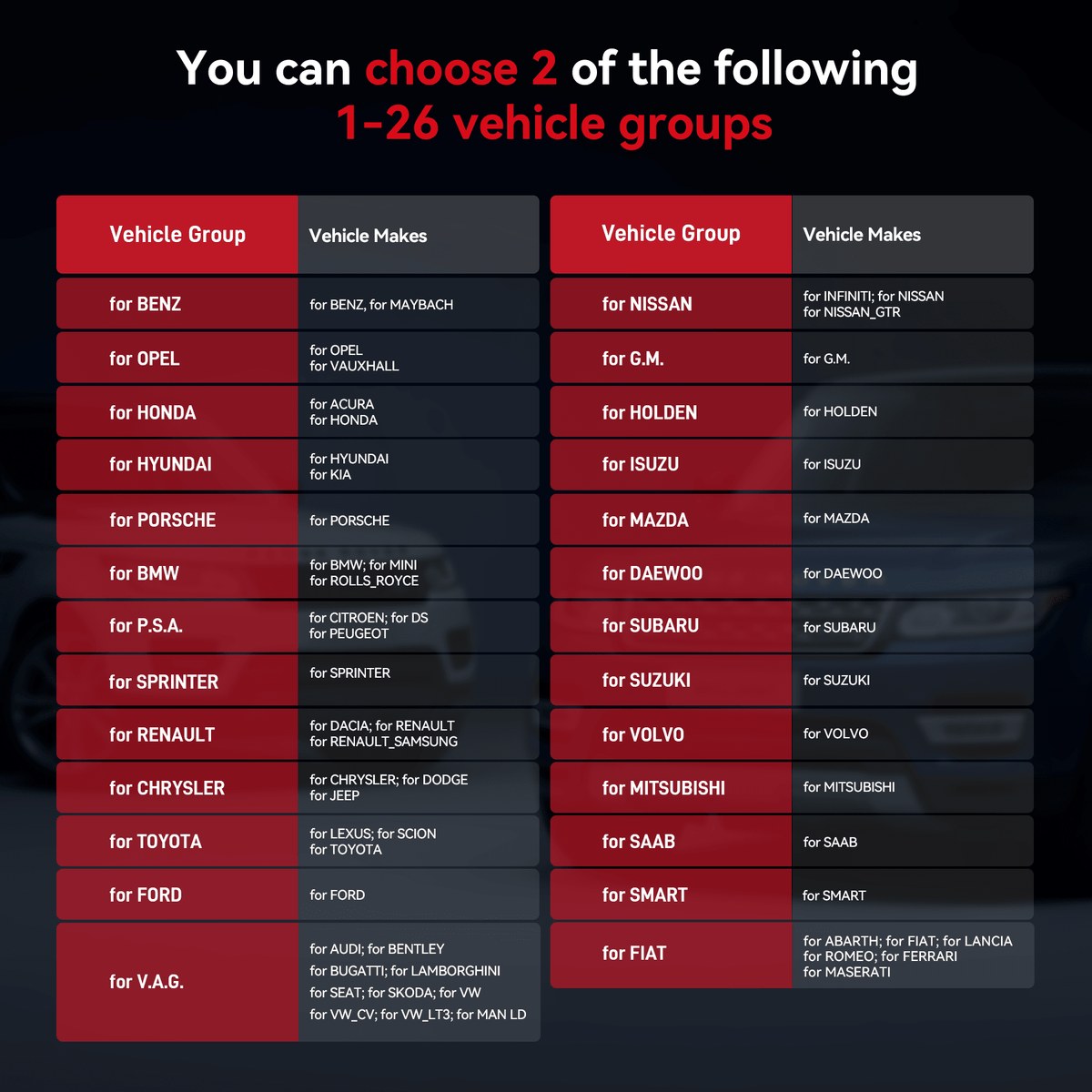

Vehicle Groups Available for Selection
PICK ANY 2 · FREE OF CHARGEIt doesn’t just read codes — it commands your car.
The LR V4.0 doesn't just read codes—it talks directly to your car. This professional-grade scanner sends active commands straight to individual vehicle modules and watches them respond in real time, bypassing the cabin switches entirely.
Cycle the ABS Pump Motor
Cycle Door Locks & Unlocks
Activate the Fuel Pump
Toggle Wiper & Washer Motors
Cycle the EGR Valve
Command the Fuel Injectors
Trigger the Cooling Fans
Sequence Transmission Solenoids
⚠ Compatibility Notice: And More · 18+ active tests across every onboard system — and growing with each update.

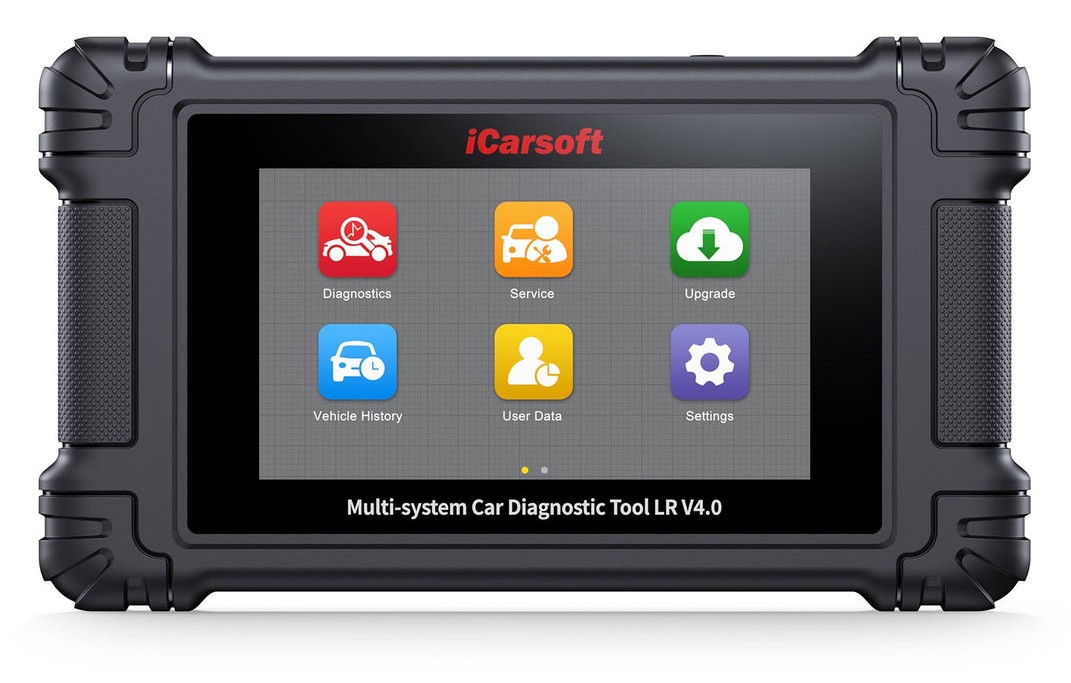

A 5-inch Android tablet built to run all day in the bay.
iCarsoft LR V4.0 car diagnostic tool is equipped with a 5-inch HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 32GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
Pay once. Upgrade forever — no subscription, ever.
Unlike other OBD scan tools on the market that require annual subscription fees, the LR V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
UPDATE PLANReady for the newest Jaguar & Land Rover communication standard.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Jaguar / Land Rover.
Plug in. Your Jaguar or Land Rover names itself in seconds.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Diagnose in your language, wherever you wrench.
Far more than a basic code reader.
The LR V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 29 advanced professional functions for complex repair tasks.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Initializes the adaptive headlamp system.
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Performs calibration after repairing or replacing the seat position drive motor.
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Adjusts the engine idle speed.
Reads and verifies odometer values stored across multiple ECUs. (Note: this function does not alter mileage; it is intended for lawful service and verification only.)
Performs turbocharger learning after component replacement, or resets stored learned values.
Recirculates a portion of engine exhaust gas back into the intake system.
Performs full calibration after window lift motor repair or replacement.
Resets the AdBlue (urea) level counter after the diesel exhaust fluid is refilled or replaced.
Performs crankshaft position learning and related calibration after engine repair.
Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. Applicable after ECU replacement, transmission removal/replacement, or clutch replacement. For adaptive clutches only.
Used for learning and calibration of heads-up display.
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Changes the vehicle's system language.
Calibrates the rain sensor after windshield replacement or sensor renewal.
Performs radar and camera learning and calibration (ADAS).
Tests each engine cylinder individually by disabling its fuel supply — useful for diagnosing cylinder-specific issues such as misfires or low compression.
Sets or removes the vehicle's maximum speed limit.
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Performs seatbelt pretensioner reset and related maintenance after airbag deployment.
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
Reach every ECU — not just the four standard systems.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V4.0 provides diagnostic coverage for more complex vehicle systems.
Dealer-grade adaptations, right in your hands.
Calibrates the yaw rate sensor to OE standards after replacement or alignment — equivalent to the dealer SDD procedure.
Wipes learned shift patterns to reset ECM/TCM adaptive, instantly curing harsh shifts and restoring factory-smooth drivability.
Forces the PCM to relearn precise physical endpoints for throttles and blend doors, fixing erratic idles and ghost climate-control issues.
Re-indexes all cabin blend-door actuators and temperature flaps simultaneously with a single tap, slashing hours off tedious dashboard overhauls.
Overrides and clears protective climate-control codes triggered by low voltage or low freon, unlocking the A/C clutch without a trip to the dealer.
Every emission check, all ten modes, ready to pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor, and EVAP System Test.
Save it, share it, print it — every job on record.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Connect the device to a Windows PC via USB and print diagnostic data for future reference.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
Every detail, on the record.
| Operating System | Android |
| Processor | Quad Core 1.3 GHz |
| Storage | 32GB |
| Display | 5-inch LCD capacitive touchscreen with 854x480 resolution |
| Connectivity | USB 2.0 / Wi-Fi (2.4GHz) / OBDII |
| Power | 9-18V |
| Operating Current | ≤500mA |
| Battery Capacity | 3.7V 5000mAh 18.5Wh |
| Tested Battery Life | Around 6 hours of continuous use |
| Type C Input | 5V / 2A |
| Power Consumption | 500mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in) |
| Net Weight | ≈ 380 g |
Everything you need, right in the box.
Note: Use the charger you already own — no extra e-waste. The LR V4.0 can be charged using any standard USB-C charger (5V/2A recommended) or a computer's USB port.
See how far V4.0 pulls ahead of V1.0, V2.0 and V3.0.
Every LR scanner carries the same trusted Jaguar & Land Rover coverage — V4.0 adds the 5-inch touchscreen, Wi-Fi updates, full bidirectional control and the complete set of high-level service functions.
| Feature | LR V1.0 | LR V2.0 | LR V3.0 | LR V4.0 |
|---|---|---|---|---|
| Coverage | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB / Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 29 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.

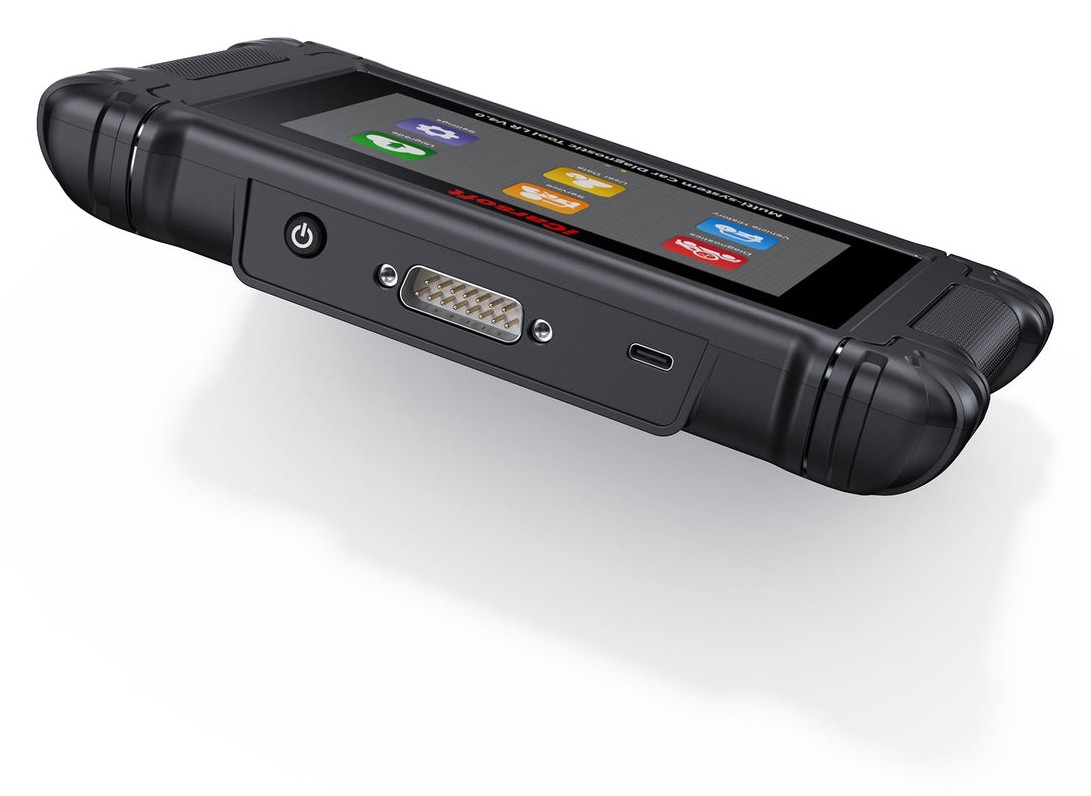

Standard 16-Pin OBD2
Built in on every LR V4.0 — plug-and-play on Jaguar and Land Rover models equipped with the standard 16-pin OBD2 diagnostic port. No adapter needed.
Jaguar & Land Rover
Full-system coverage for Jaguar and Land Rover from 1996 to 2025, including the entire Range Rover family — engine, transmission, ABS, airbag and ECU adaptations.
Two More Make Groups
Download any 2 of the additional vehicle make groups free of charge, whenever you need to service brands beyond Jaguar and Land Rover.
Not sure whether your vehicle is supported? Send us your VIN and our support team will confirm coverage before you buy.
Verify by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the LR V4.0 from Jaguar & Land Rover owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the LR V4.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Jaguar and Land Rover models and functions the LR V4.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The LR V4.0 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
