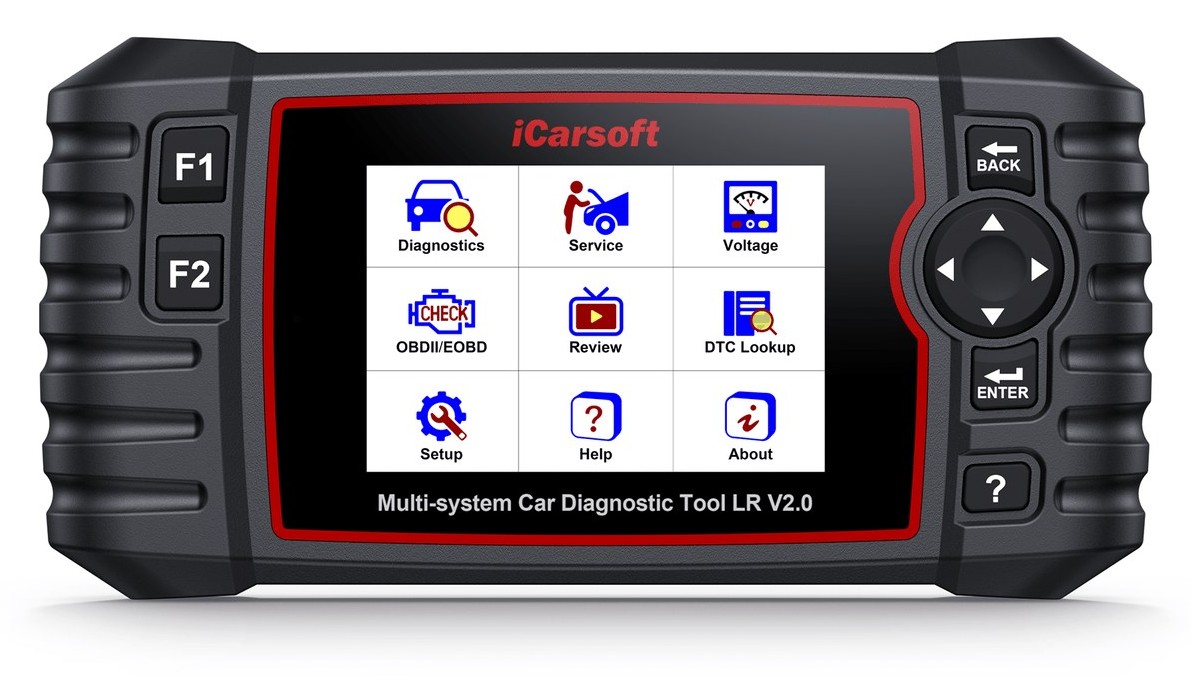

LR V2.0
The LR V2.0 covers every Jaguar and Land Rover system — from engine and transmission to airbag and ABS —providing comprehensive OE-level diagnostic scans, 9 essential service reset functions, and lifetime free software updates. It is the ultimate plug-and-play maintenance companion compatible with Jaguar and Land Rover models from 1996 to 2025.
Built for the workshop, not the showroom.

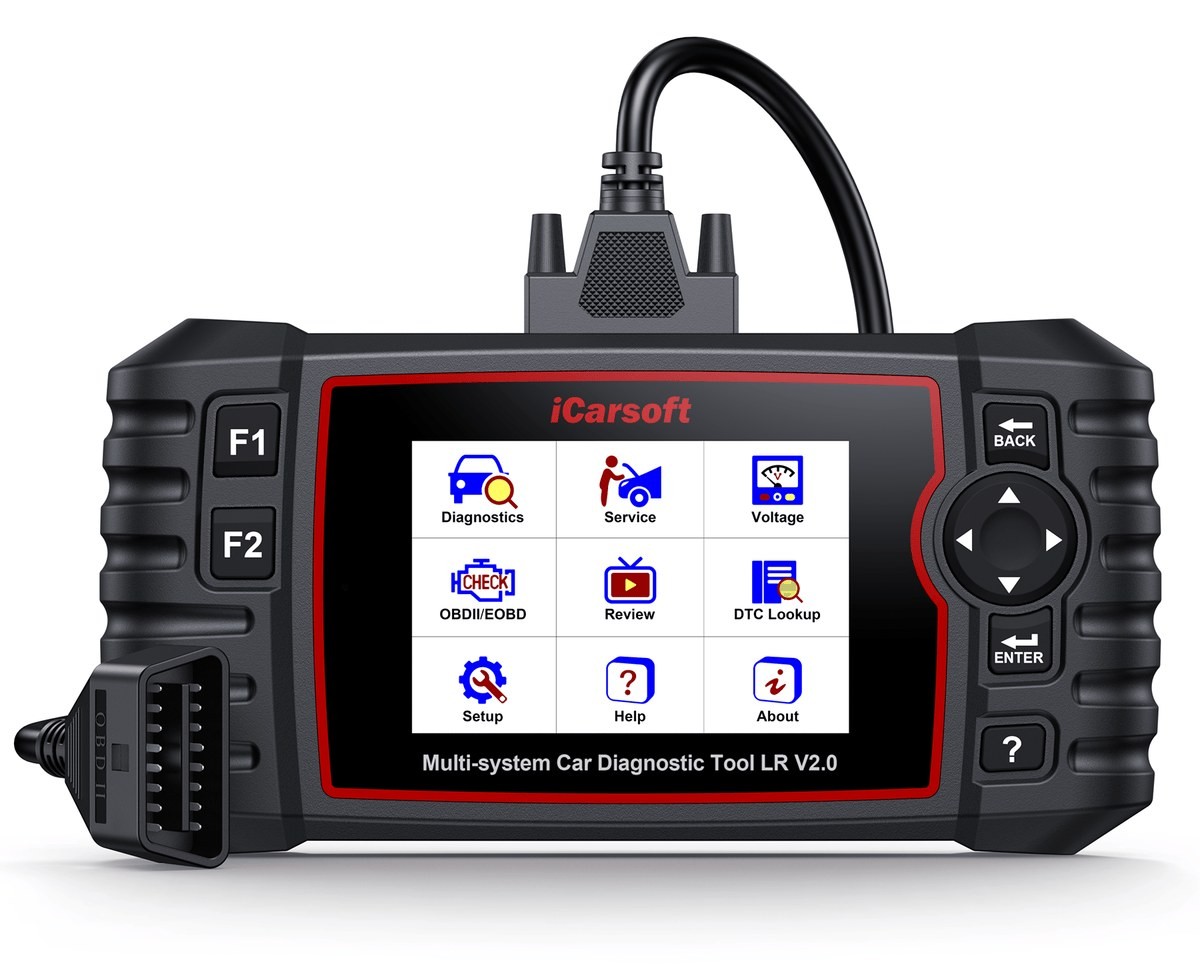

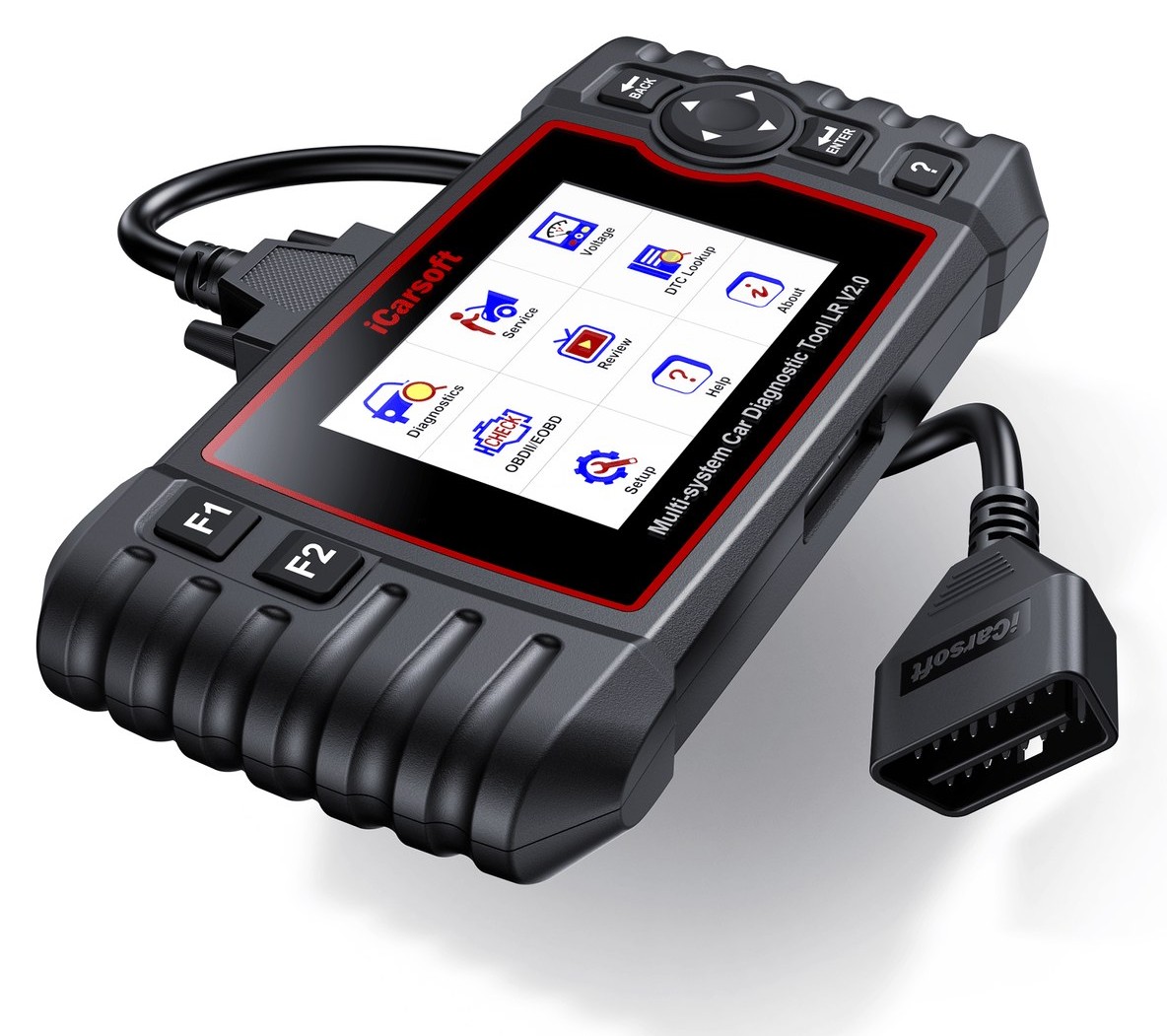

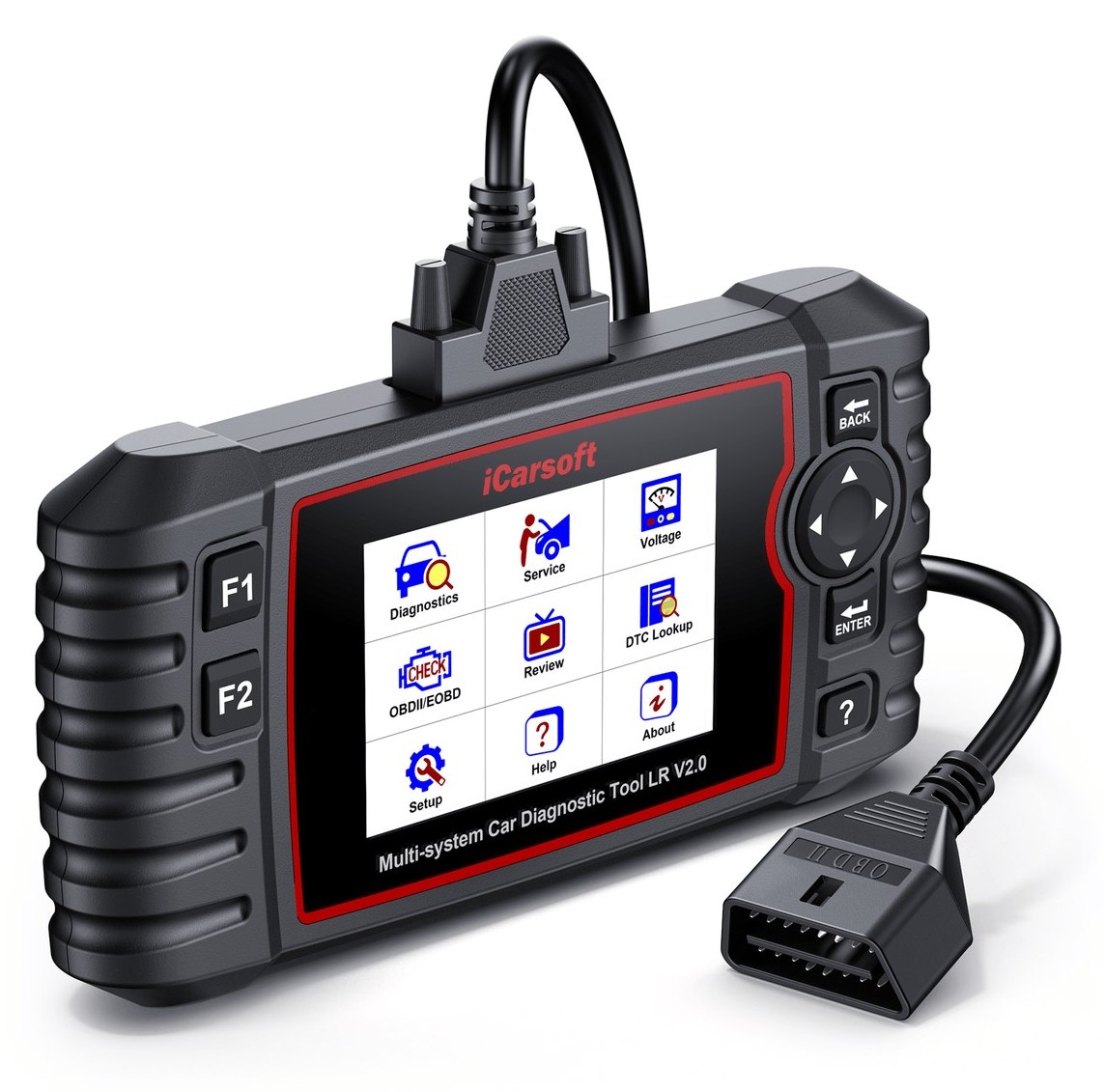

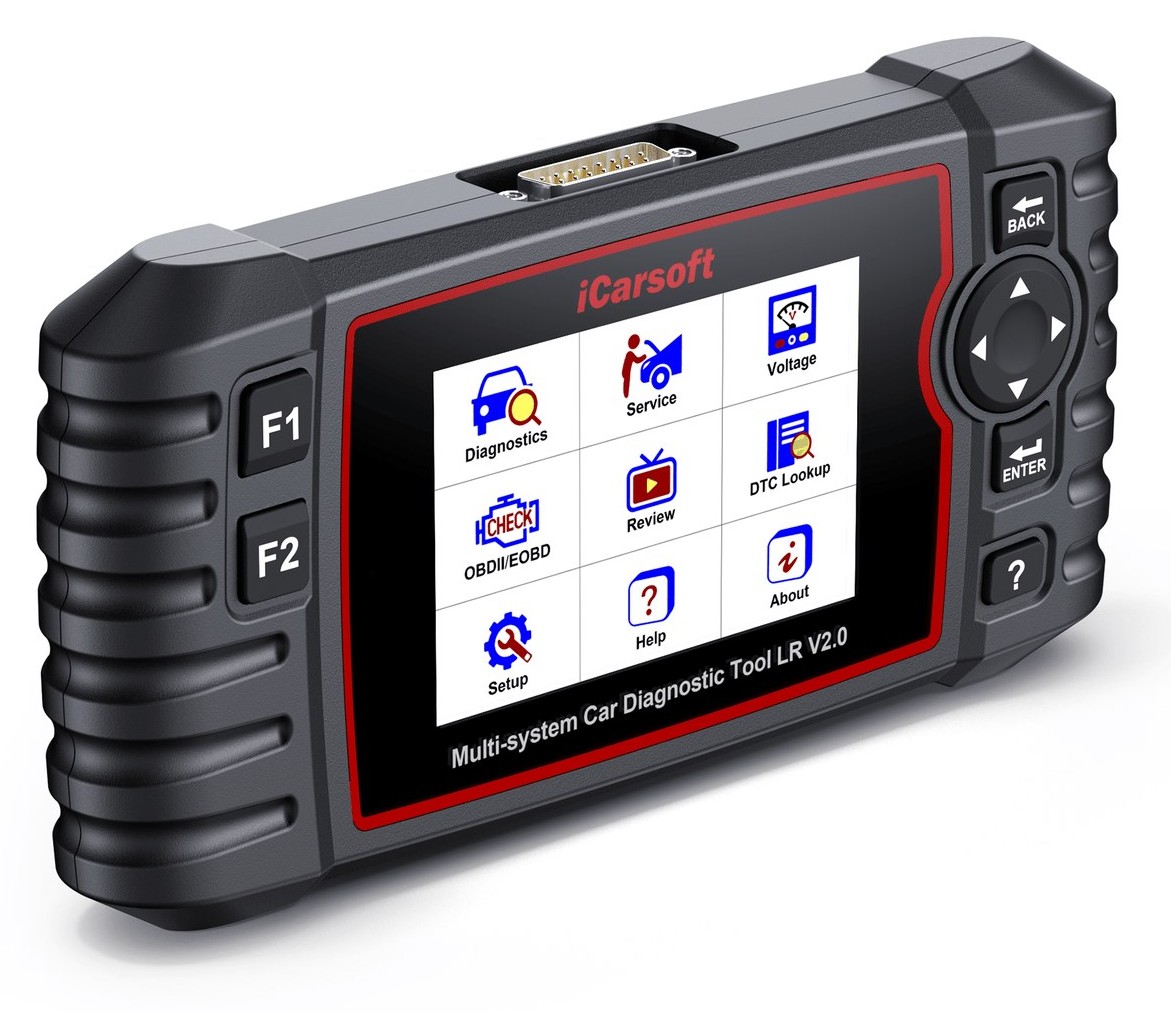

The iCarsoft LR V2.0 features a vibrant 4-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
The last update bill you'll never receive.
Unlike other OBD scan tools on the market that require annual subscription fees, the LR V2.0 offers lifetime free software upgrades.
UPDATE PLANReady for the next generation before it arrives.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation communication protocol increasingly adopted by modern Jaguar and Land Rover vehicles.
One plug and your Rover says its name.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Fifteen languages, one fluent tool.
The Jaguar / Land Rover scanner LR V2.0 supports 15 interface languages — pick yours from the list below.
Nine dealer visits you can cross off the list.
The LR V2.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Beyond the big four — into every module.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V2.0 provides diagnostic coverage for more complex vehicle systems.
Walk into the emission test already knowing the result.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Your diagnostic paper trail, built automatically.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

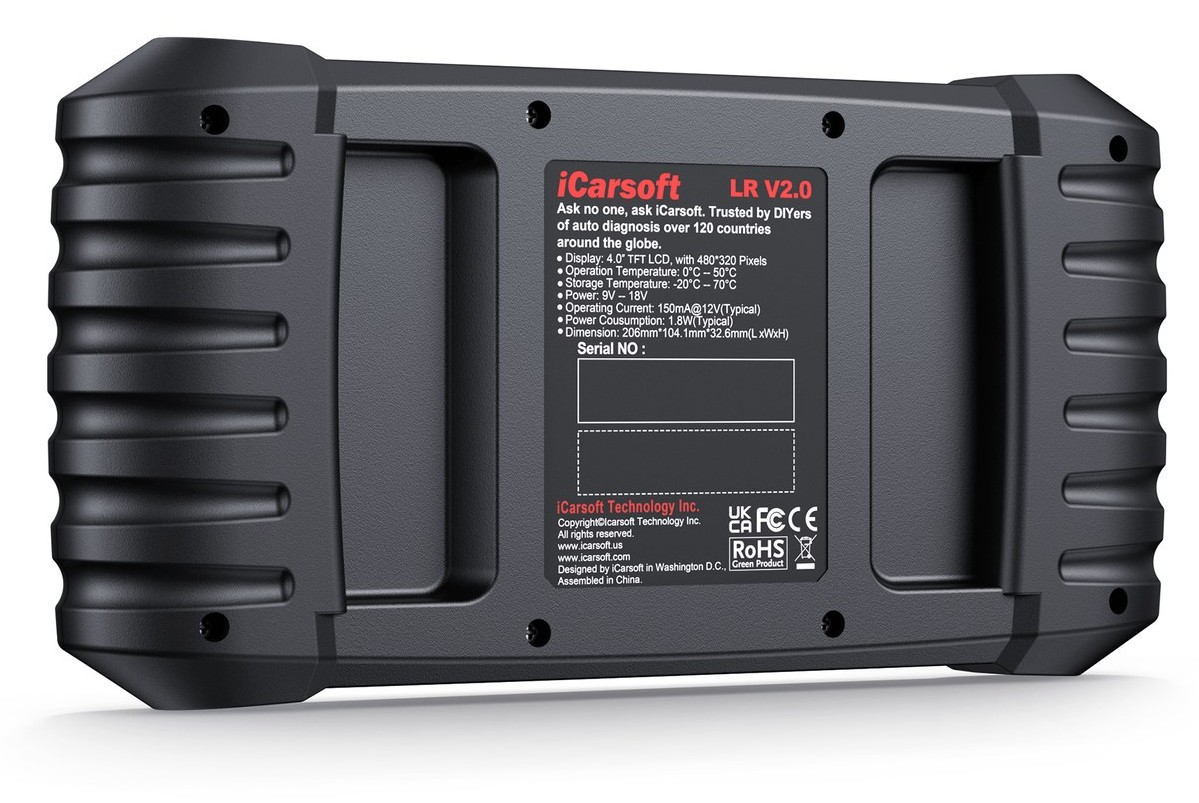

Every spec, on the record.
| Display | 4.0-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 206 × 104.1 × 32.6 mm (8.11 × 4.10 × 1.28 in) |
| Net Weight | ≈ 350 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

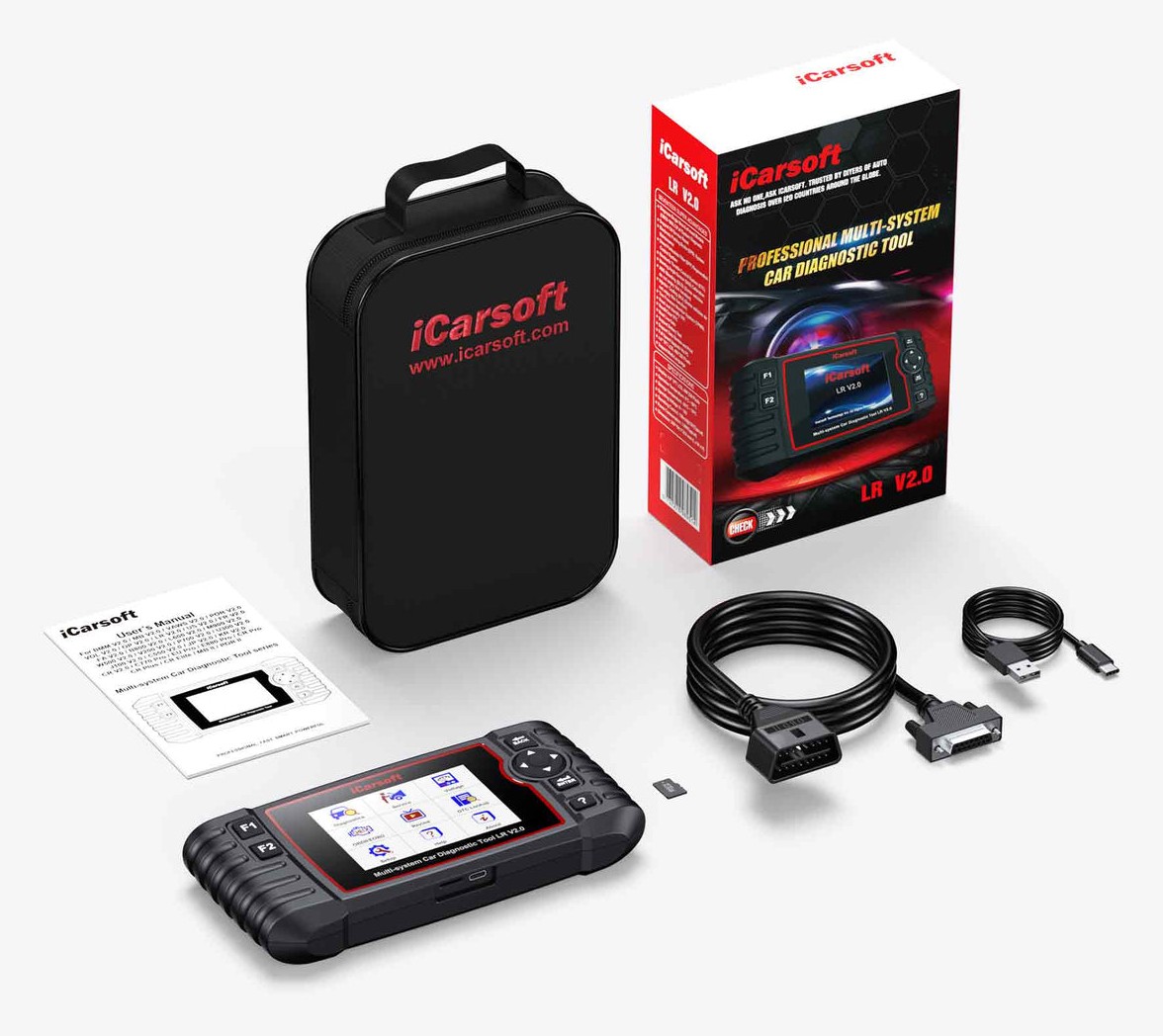

Open the box, start the scan.
Where the V2.0 sits in the LR family.
Every LR scanner carries the same trusted Jaguar / Land Rover coverage — the V2.0 is the smart-value generation with the full set of everyday service resets. Newer models add bi-directional control and more.
| Feature | LR V1.0 | LR V2.0 | LR V3.0 | LR V4.0 |
|---|---|---|---|---|
| Coverage | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 29 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Unsure whether a specific function is supported on your exact model year? Send us your VIN and we will confirm before you order.
Check by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the LR V2.0 from Jaguar / Land Rover owners, mechanics and channels — see the unit running live diagnostics and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the LR V2.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Jaguar / Land Rover models and functions the LR V2.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
