POR V4.0
The POR V4.0 covers every Porsche system — from engine and transmission to SRS airbag, ABS, and dealer-level ECU adaptations — with full bidirectional control, 28 service functions, and lifetime free software updates. Compatible with all Porsche models from 1996 to 2025.
Built for Porsche out of the box — with room for two more brands, free.
The iCarsoft POR V4.0 comes pre-installed with software for Porsche, making it ready to use right out of the box. 2 further vehicle make groups can be downloaded when you need it free of charge.
Pre-installed
Free Downloads
Downloaded free of charge, whenever you need them — no extra cost, ever.
Total Coverage
Pay once and cover the brands you actually service — far beyond Porsche.

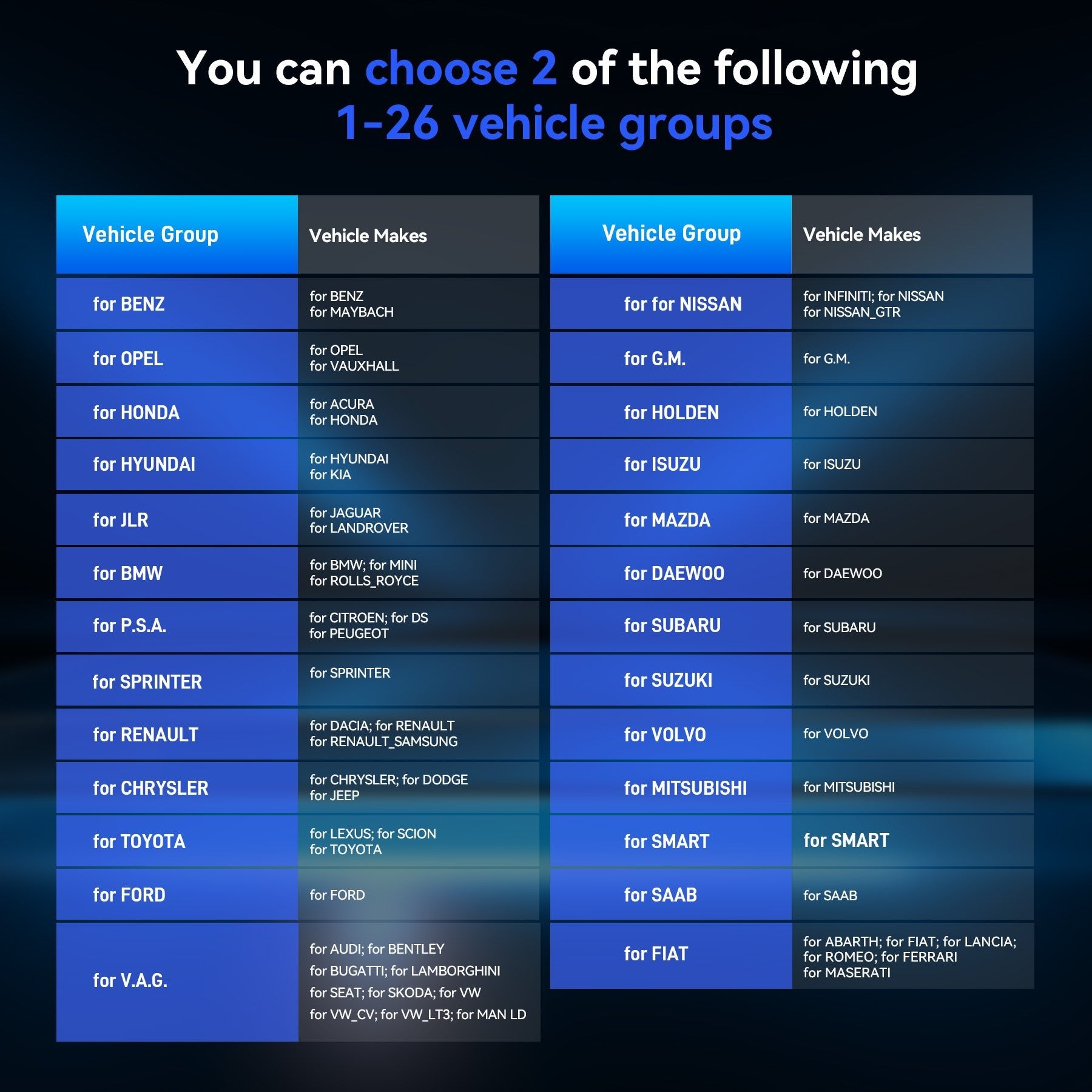

Vehicle Groups Available for Selection
PICK ANY 2 · FREE OF CHARGEA 5-inch Android tablet built to live in the workshop.

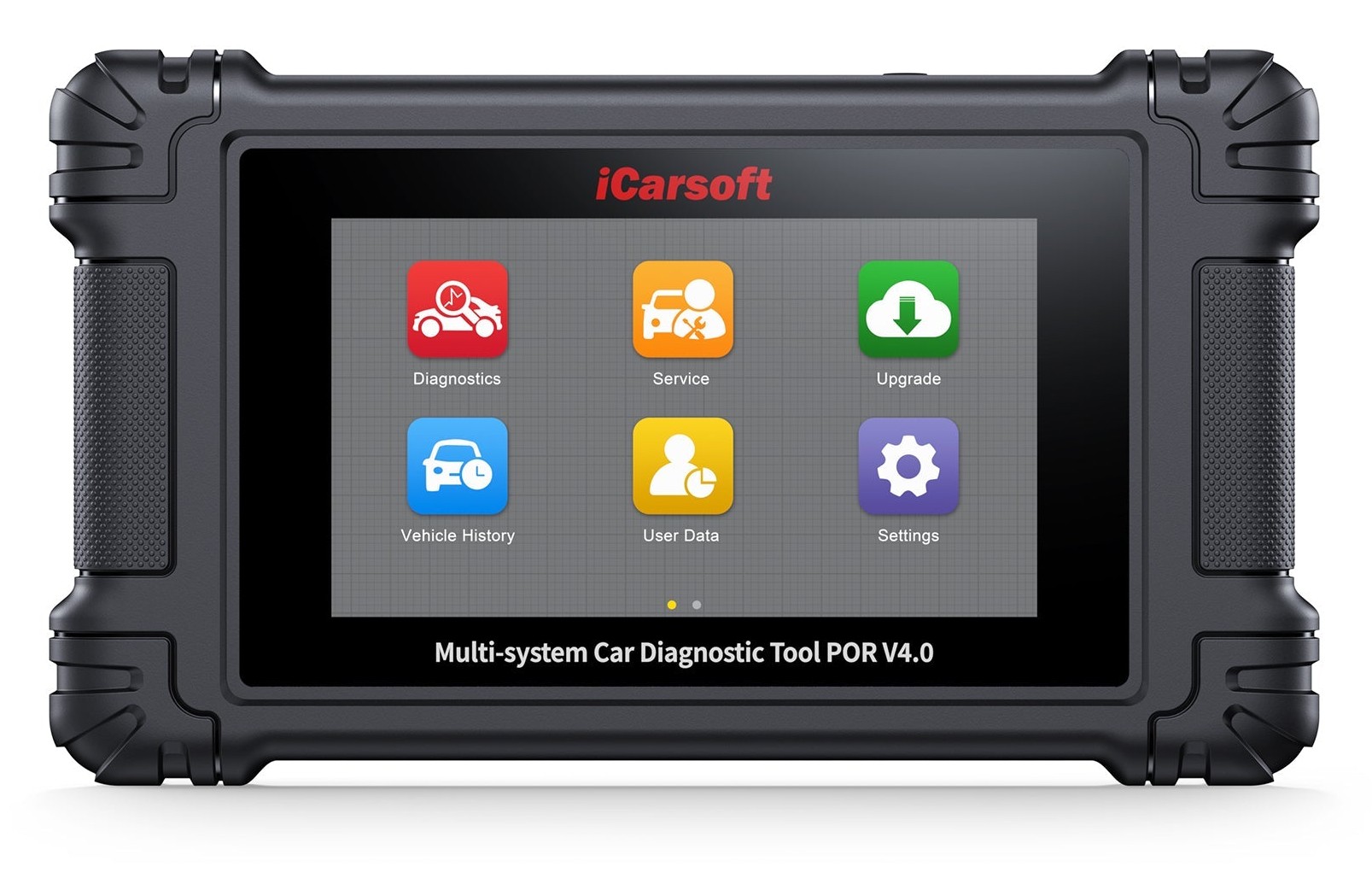

iCarsoft POR V4.0 car diagnostic tool is equipped with a 5-inch Ultra HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 32GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
Pay once. Upgrade forever — no subscription, ever.
Unlike other OBD scan tools on the market that require annual subscription fees, the POR V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
UPDATE PLANReady for the newest Porsche platforms on the road.
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation communication protocol that Porsche has adopted across its latest platforms.
Stop guessing — command every component and watch it answer.
Ordinary OBD scanners only read fault codes — they tell you what might be wrong, but not which part is actually failing. The POR V4.0 goes further: full bidirectional control lets you send commands directly to individual components and watch them respond in real time.
Cycle the ABS Pump Motor
Run Window Regulators
Activate the Fuel Pump
Command the Fuel Injectors
Cycle the EGR Valve
Command the Fuel Injectors
Trigger the Cooling Fans
Sequence Transmission Solenoids
⚠ Compatibility Notice: And More · 19+ active tests across every onboard system — and growing with each update.
Plug in, and your Porsche introduces itself.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Diagnose in your language, wherever you wrench.
Far more than a code reader — a full service toolkit.
The POR V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 19 advanced professional functions for complex repair tasks — 28 in total.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Calibrates and initializes the adaptive headlamp system (AFS/Matrix LED) — required after headlight assembly replacement, level sensor adjustment, or front suspension repair. Essential for Porsche models equipped with Dynamic Light System or LED Matrix headlights.
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Calibration after repairing or replacing the seat position drive motor.
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Reads odometer values stored in multiple ECUs (for service and verification purposes).
Recirculates a portion of engine exhaust gas back into the intake system.
Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. Applicable after ECU replacement, transmission removal/replacement, or clutch replacement. For adaptive clutches only.
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Performs adaptive cruise control (ACC) calibration and personalization
Performs radar and camera learning and calibration (ADAS).
Configure features and match new components.
Performs seatbelt pretensioner reset and related maintenance after airbag deployment.
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
Reach every ECU, not just the standard four.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the POR V4.0 provides diagnostic coverage for more complex vehicle systems.
Dealer-grade adaptations, right in your hands.
Every emission check, all ten modes, ready to pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor, and EVAP System Test.
Save it, share it, print it — every job on record.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Diagnostic History
Instantly revisit previously tested vehicle systems and earlier scan results.
Save & Share
Store full reports and share them with customers or colleagues in seconds.
Print Reports
Connect to a Windows PC over USB and print diagnostic data for future reference.
Feedback Function
Report issues during use — our technical team reviews them and steps in to help.
Every detail, on the record.
| Operating System | Android |
| Processor | Quad Core 1.3 GHz |
| Memory | 32GB |
| Display | 5-inch LCD capacitive touchscreen with 854x480 resolution |
| Connectivity | USB 2.0 / Wi-Fi (2.4GHz) / OBDII |
| Power | 9-18V |
| Operating Current | ≤500mA |
| Battery Capacity | 3.7V 5000mAh 7.4Wh |
| Tested Battery Life | Around 6 hours of continuous use |
| Type C Input | 5V / 2A |
| Power Consumption | 500mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in) |
| Net Weight | ≈ 380 g |
Everything you need, right in the box.
Note: Use the charger you already own — no extra e-waste. The POR V4.0 can be charged using any standard USB-C charger (5V/2A recommended) or a computer's USB port.
See how far V4.0 pulls ahead of V1.0, V2.0 and V3.0.
Same trusted Porsche coverage across the line — V4.0 adds the touchscreen, Wi-Fi updates, full bidirectional control and the complete 19 high-level service functions.
| Feature | POR V1.0 | POR V2.0 | POR V3.0 | POR V4.0 |
|---|---|---|---|---|
| Coverage | Porsche | Porsche | Porsche | Porsche +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 19 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the POR V4.0 from Porsche owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the POR V4.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Porsche models and functions the POR V4.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
