CR Unicorn

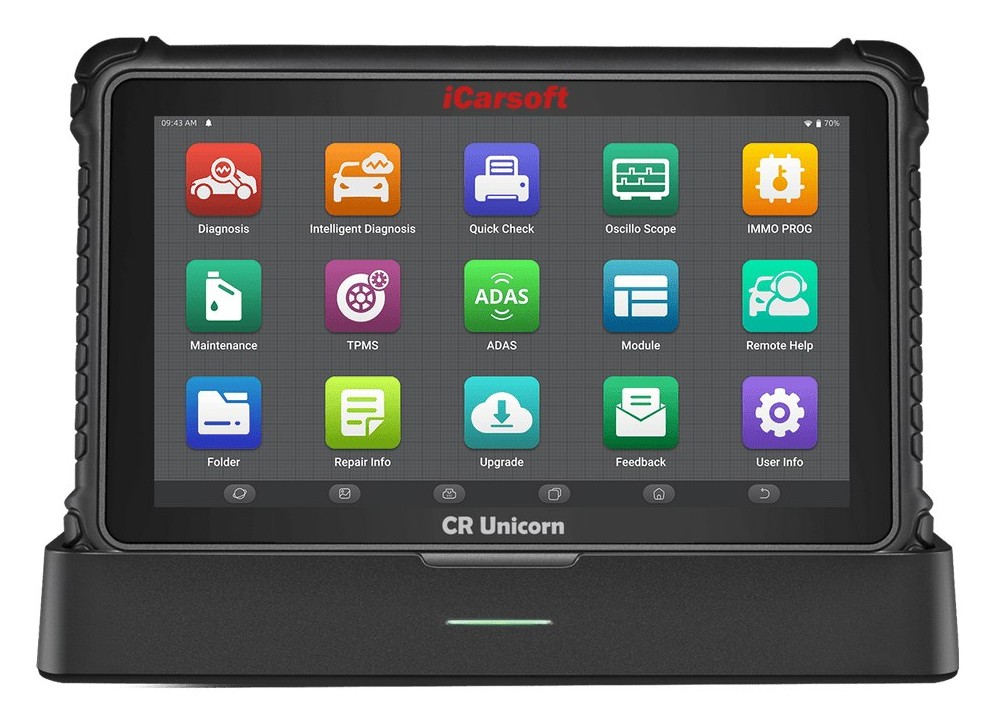

The iCarsoft CR Unicorn is a premium, ultimate flagship intelligent diagnostic tool engineered for professional technicians and advanced car enthusiasts. Driven by a high-performance MT8788 Octa-Core 2.0GHz processor and an expansive, vibrant 13.3-inch Full HD touchscreen display, this platform delivers unmatched speed and clarity for comprehensive one-click full-system code scanning. Equipped with a massive 18600mAh battery for long-lasting workshop performance, the CR Unicorn features built-in J2534 Pass-Thru support and comes with 2 years of free software upgrades.
One flagship platform — from topology map to cloud coding.
The CR Unicorn is the next-generation flagship of the iCarsoft CR line: a 13.3-inch Android platform pairing OE-level full-system diagnostics with intelligent topology mapping, built-in J2534 pass-thru, cloud-based online ECU programming for 13 brands, FCA SGW secure-gateway access, full bi-directional control and 40 service functions — powered by an octa-core CPU and an 18600mAh all-day battery, with 2 years of free software updates and no per-year subscription.
Flash factory-grade firmware — J2534 pass-thru, straight from your PC.
J2534 Standard Compliance: Built-in support for the SAE J2534 (Pass-Thru) protocol. This allows the CR Link Wireless J2534 VCI to act as a bridge between the vehicle electronics and PC-based OEM factory diagnostic/programming software, saving thousands on brand-specific hardware.
Online ECU Programming: Supports high-end cloud programming for 13 premium vehicle brands, including Audi, BMW, Porsche, Mercedes-Benz, and Volkswagen, enabling flashing of the latest OEM software to replace existing software/firmware in the ECUs.
Expert ECU Coding & Personalization: Modifies control module parameters to customize vehicle performance, improve drivability integration, and activate new features.
Two hundred marques deep — one dealer-grade scan.
Extensive Compatibility: Supports comprehensive, dealership-level diagnostic scanning for over 200 vehicle makes and models worldwide.
Advanced Protocols: Native compatibility with next-generation communication protocols including CAN FD, LIN, DoIP, and J2534 without additional adapters.
Global Database: Delivers deep-dive diagnostics for mainstream American, European, Asian, and exotic car models.

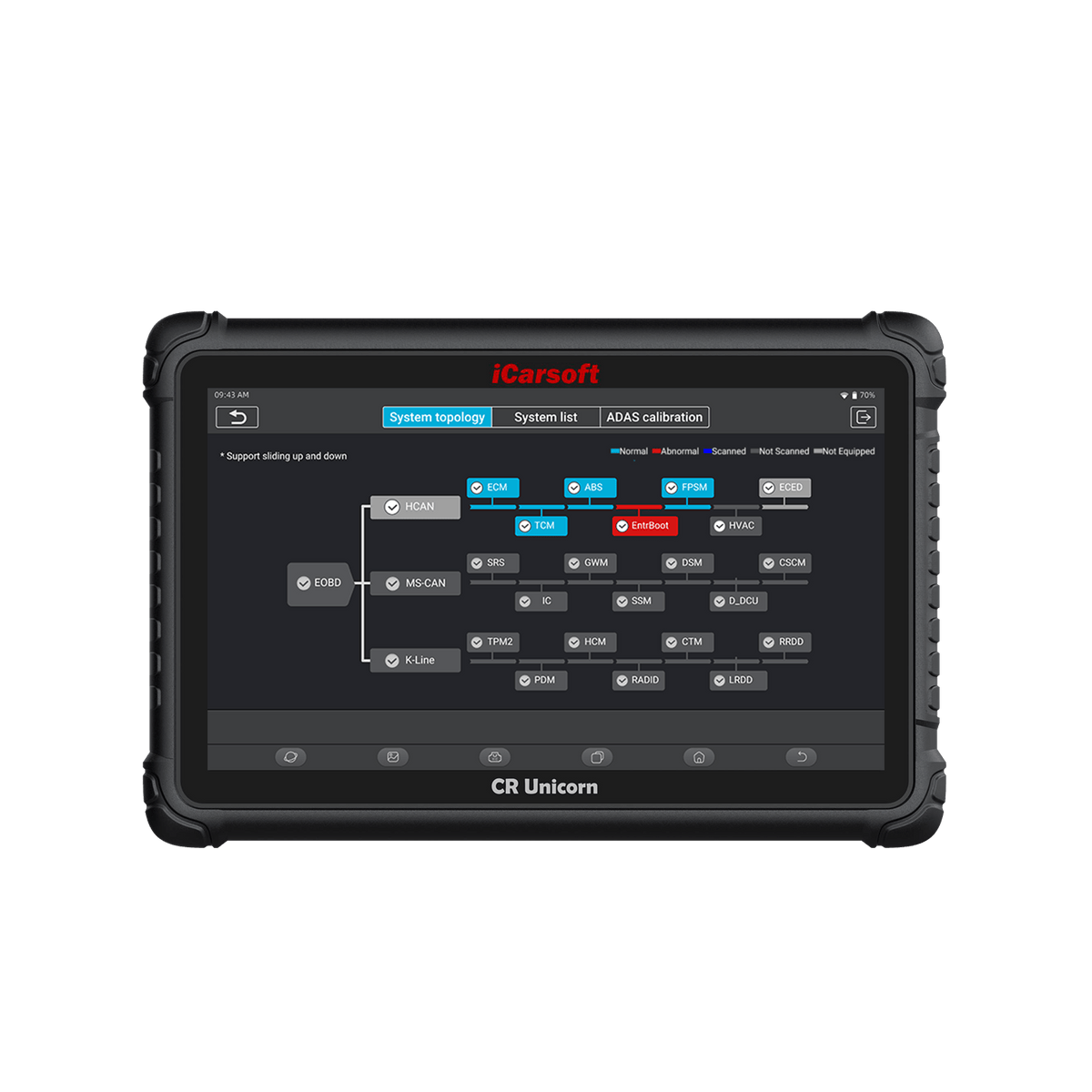

See the whole network light up — faults in a single glance.
Visual Network Architecture: Transforms complex raw ECUs and automotive communication networks into a clear, interactive visual tree or grid.
Instant Fault Spotting: Uses smart color-coded indicators (Green for normal, Red for fault codes) to display system-wide health. Technicians can pinpoint bus disconnects or faulted modules at a glance, saving hours of manual diagnostic time.
Unlock the FCA secure gateway — no bypass cables, no workarounds.
Authorized Secure Gateway Access Solution: Provides native AutoAuth integration to seamlessly access and unlock the secure network on modern Fiat, Chrysler, Dodge, Jeep, RAM, and Alfa Romeo vehicles (2018–Present).
Direct OBDII Control: Unlocks full authorization to clear diagnostic fault codes, stream live data, execute bi-directional active tests, and perform all 40 service resets directly through the standard OBDII port—eliminating the need for external bypass cables.
Note: Requires an active AutoAuth user account and subscription (additional fee applies).
Trigger it, watch it, verify it — no more guesswork.
Go beyond reading codes: the CR Unicorn commands actuators and reads live inputs so you can prove a fault before you replace a part.
Activation Tests
Sensor Testing
Actuator Verification
System Calibration
Two years of updates, on the house.
While standard industry tools charge for updates after just 1 year, the iCarsoft CR Unicorn includes 2 full years of free online software updates, keeping your tool equipped with the latest vehicle models, J2534 definitions, and software enhancements without hidden fees.
UPDATE PLANForty OE-level resets and relearns, ready for any bay.
From oil resets and DPF regeneration to EV battery diagnostics and turbocharger matching, the CR Unicorn packs 40 standardized
service and maintenance routines into one platform.
▸ 40 standardized service & maintenance functions:
Additional functions may be available depending on the vehicle.
Open the case fully equipped — a pro workshop, right out of the box.
The CR Unicorn ships ready for real-world work — printer, videoscope, TPMS tool and battery testing, plus the modules and adapters most tools charge extra for, all included as standard.
CR Link Smart J2534 VCI
Thermal Printer Module
Digital Inspection Videoscope
T-wand9000 Programming Tool & Sensors
Battery Test Clip Set
Passenger OBDI Adapters Kit
Grow into a total-shop hub — one platform, endless reach.
Transform your CR Unicorn into a total-shop diagnostic hub with specialized expansion hardware.
4-Channel Oscilloscope Box
ADAS Calibration Kit
Thirteen inches of Android muscle, built for the all-day shift.

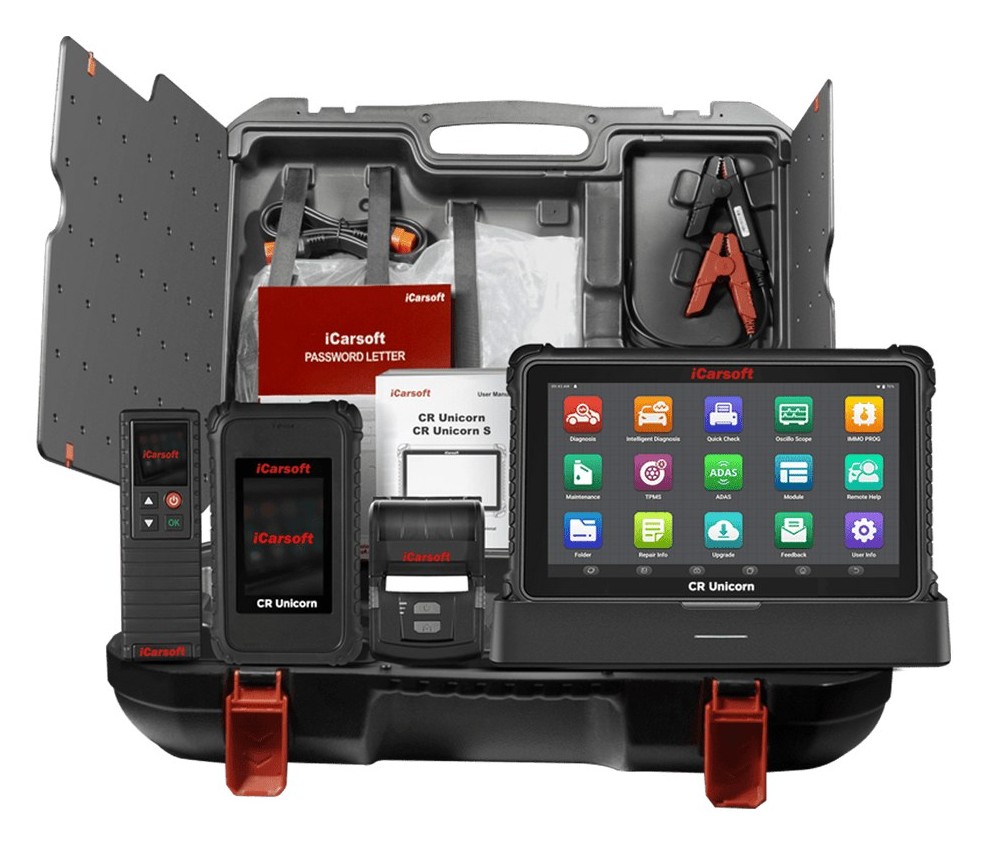

Open the case — a complete pro kit, accounted for.
Everything you need to start earning on day one — 13.3″ main unit, J2534 VCI, printer, videoscope, TPMS tool, battery tester and a full adapter set.
Four ways to run your shop — find your CR flagship.
The CR Ultra, Ultra P, Unicorn and Unicorn S share the same OE-level diagnostic core. Here is exactly how they line up — the CR Unicorn steps up to a 13.3″ Full HD display, octa-core power and 8GB / 256GB.
| Feature | THIS MODEL iCarsoft CR Unicorn | iCarsoft CR Ultra | iCarsoft CR Ultra P | iCarsoft CR Unicorn S |
|---|---|---|---|---|
| Screen Size | 13.3 in | 10.1 in | 10.1 in | 13.3 in |
| Resolution | 1920×1080 | 1280×800 | 1280×800 | 1920×1080 |
| CPU | Octa-core 2.0GHz | Quad-core 2.0GHz | Quad-core 2.0GHz | Octa-core 2.0GHz |
| RAM / ROM | 8GB / 256GB | 4GB / 128GB | 4GB / 128GB | 8GB / 256GB |
| Battery | 18600mAh | 12600mAh | 12600mAh | 18600mAh |
| VCI | CR Link | Common VCI | CR Link | CR Link |
| Camera | 13MP | 8MP | 8MP | 13MP |
| SD Card Slot | 500GB | — | — | 500GB |
| Operating System | Android 9 | Android 10 | Android 10 | Android 9 |
| Full-System Diagnosis | ||||
| Online Programming | ||||
| J2534 Pass-Thru | — | |||
| ADAS Calibration | ||||
| CAN-FD | ||||
| DoIP | ||||
| 40 Maintenance Resets | ||||
| Passenger Vehicle Diagnosis | ||||
| Commercial Vehicle Diagnosis | Optional | Add HD2000 | Optional | |
| EV & Battery Pack Diagnosis | Optional | — | Optional | Optional |
Comparison reflects standard configuration. Optional items are sold separately. Confirm exact configuration before you buy.
Good to know before you buy.
Yes. The CR Unicorn includes 2 years of free online software updates, keeping the tool equipped with the latest vehicle models and software enhancements without hidden fees.
Yes. It supports cloud-based online programming for 13 premium brands — including Audi, BMW, Porsche, Mercedes-Benz and Volkswagen — plus expert coding, adaptation and personalization. Always connect a stable battery maintainer and back up the module’s data before programming or coding.
Yes. The CR Unicorn provides officially authorized secure gateway access with native AutoAuth for 2018-present Fiat, Chrysler, Dodge, Jeep, RAM and Alfa Romeo vehicles — no external bypass cables required.
An active AutoAuth user account and subscription are required to access the secure network, which involves an additional fee.
The CR Unicorn covers passenger vehicles out of the box. Heavy-duty commercial-vehicle diagnostics are available as an optional add-on. High-voltage battery diagnostics are among the 40 service functions, subject to vehicle support.
40 standardized service and maintenance functions — from oil resets and DPF regeneration to EV battery diagnostics and turbocharger matching. Availability is dynamically determined by the specific vehicle make, model and manufacturing year.
Not necessarily. You can select the vehicle manually and all diagnostic functions will still work normally. Contact our support team with your VIN and we’ll confirm coverage.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the CR Unicorn from owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and ECU coding on real vehicles before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the CR Unicorn — setup, functions, ECU coding and troubleshooting.
Function List & Vehicle Coverage
See exactly which vehicles and functions this model supports, by brand and system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The CR Unicorn is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
